Canlubang Techno - Industrial Corporation (CTIC) is strategically located at 530 CTIC Building Brgy. Sirang Lupa, Calamba City, Laguna, we have been in the business for 22 years. We are supplying various products to different companies in the country. Our company has diversified types of products such as Office Furniture, Consumable Items, Fiber Glass and RACKING SYSTEM.

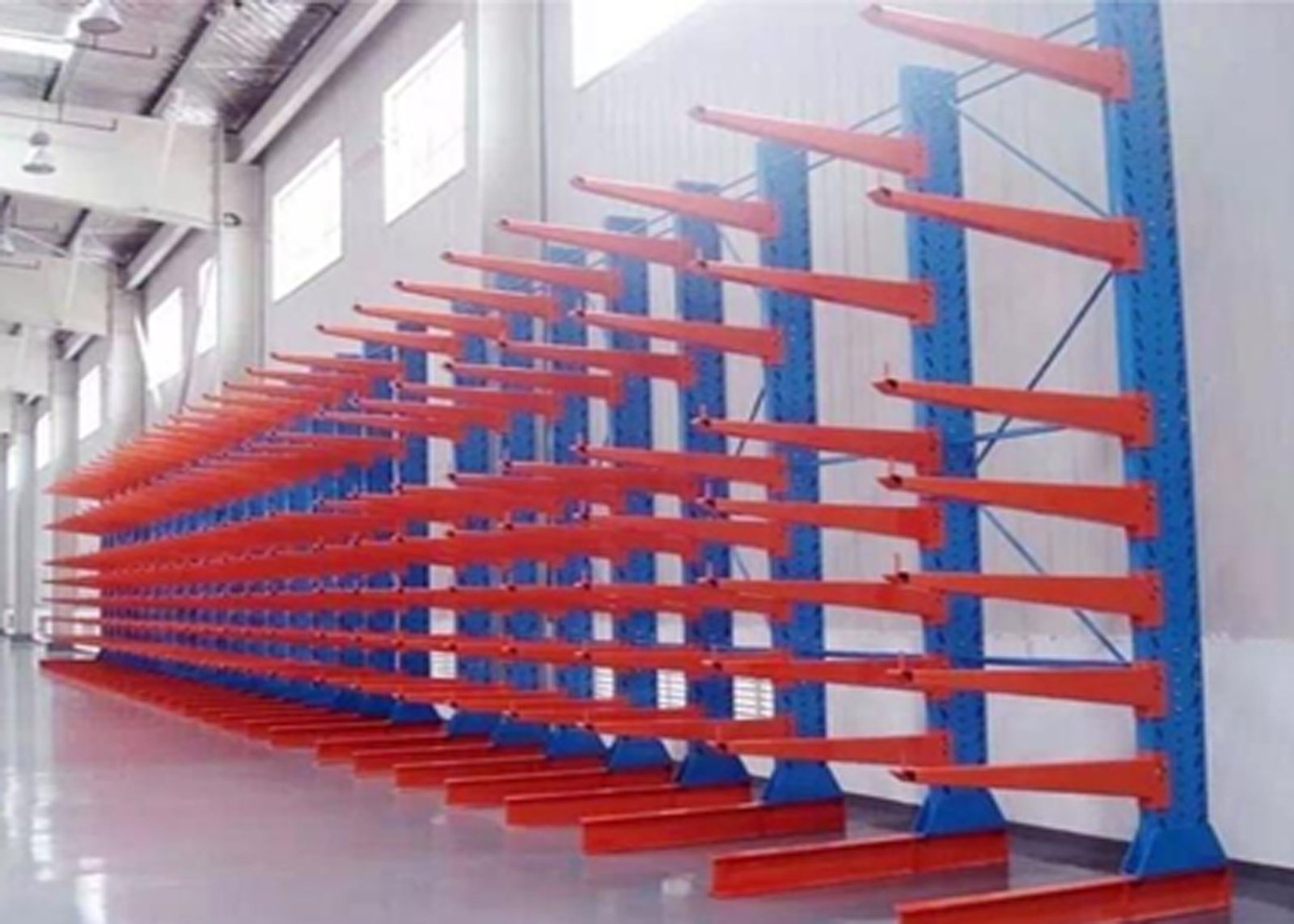

Cantilever rack is specially designed to store items of various length, such as metal beam, pipes, timbers, wooden boards, metal and plastic sheets and so on. Cantilever rack consists of column, base, arm and connecting bracing. Single side or Double Side are both available. Column height can be up to 6000m and are length is better to be 1000m. Arm can be adjusted by a pitch of 100mm. This rack can be a light duty type, medium and heavy type.
Inquire

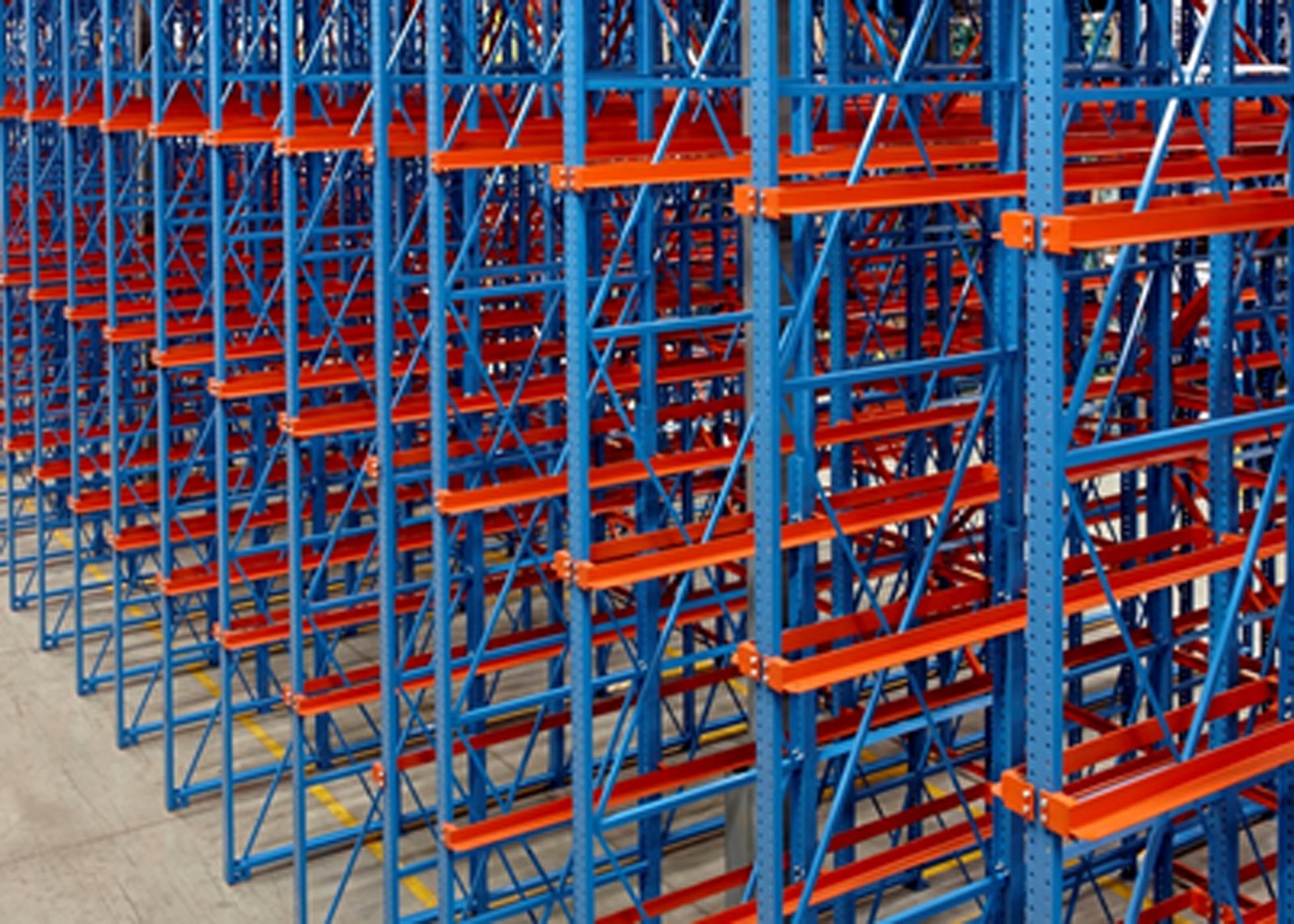

Drive in rack consist of upright frame, pallet rail, single and double side arm, top beam, back beam, single and double side spacer, big and small top bracing, guide rail, upright protector and so on. Pallet weight is no more than 1500kg. The good height on the pallet is no more than 2000mm. Drive rack can make use of 75% of the warehouse space, is a kind of high density storage system. It can accommodate twice more pallets than pallet rack. Drive in rack is a kind of First-in-Last-out storage system, suite for storing these goods which is of fast turnover, unified and with long shelf-life.
Inquire

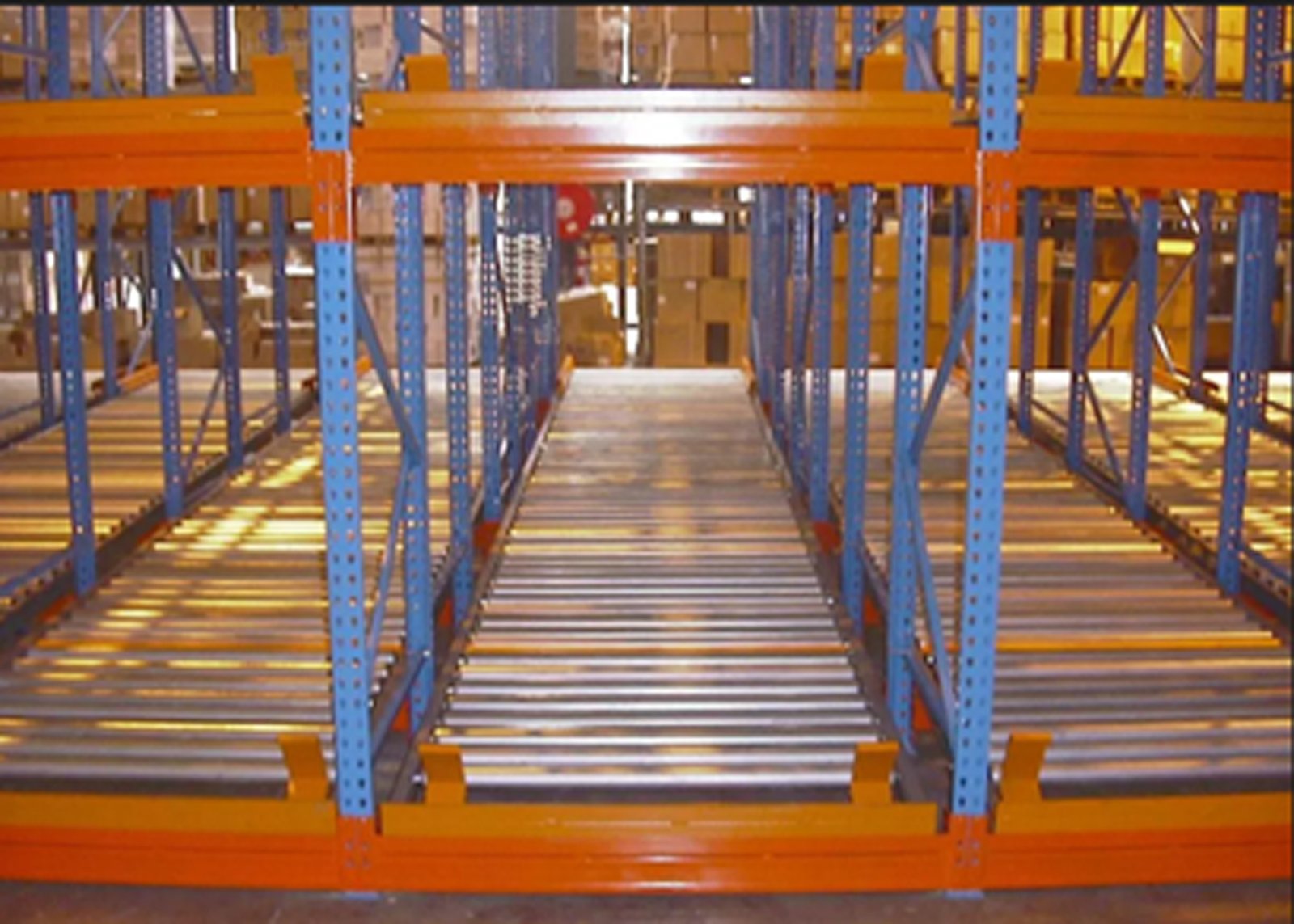

Live rack is high density and low energy consumption storage system. The pallet is supported by steel rollers. The pallet slide down from the entrance to exit side along the sloping roller conveyer. The brake installed in the roller system can control pallet’s sliding speed. The safety separator can separate the first pallet from the following one at the exit side so that the forklift can easily take away the pallets. By this way, first-in-first-out working mode can be realized.
Inquire

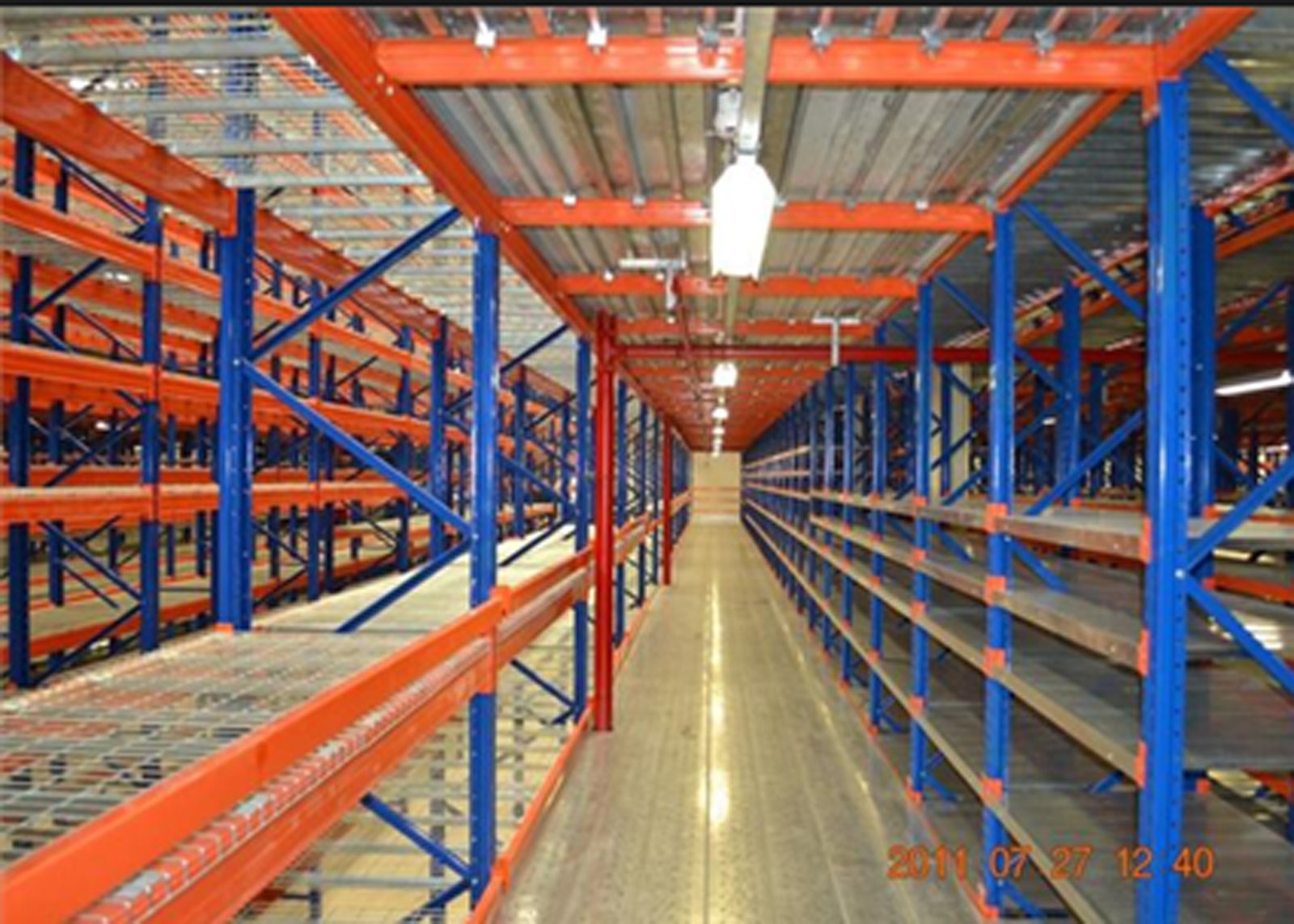

Mezzanine rack takes medium-duty or heavy-duty rack and the main part to use solid steel plate or solid steel checkered plate as the flooring, Single-tier or multi-tier mezzanine can be designed, normally it is 2 or 3 tiers. Stairs, lift platform, hoist, conveyer belt or forklift are used to take goods upstairs. Generally load capacity of multi-tier is 300kg-1,000kg/sqm. It is widely used for tall warehouses with small goods which is operated manually. Mezzanine can make best use of the warehouse space. It is widely applied to auto parts, 4S stores, light industry& electronics industry.
Inquire

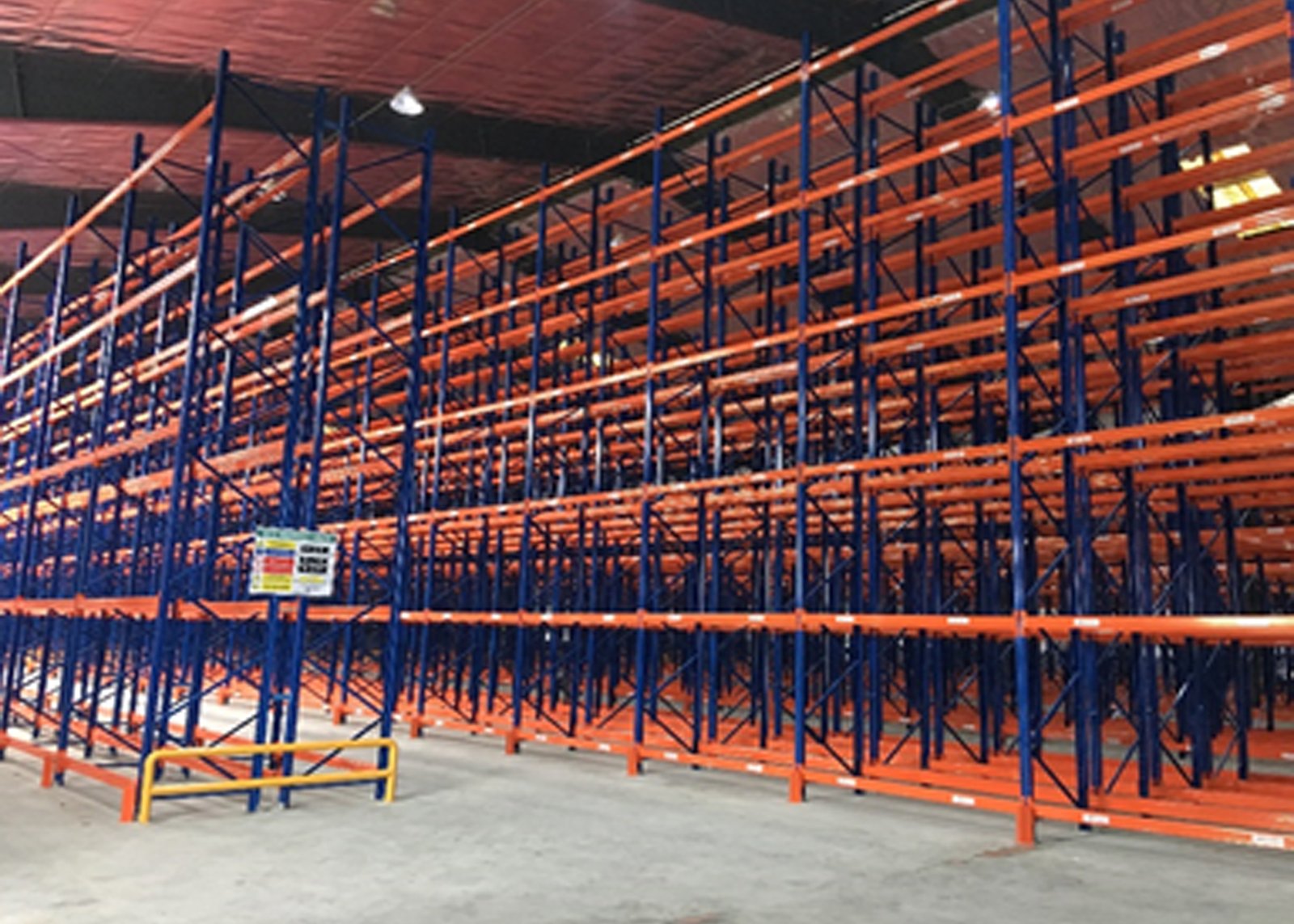

Pallet rack is also called beam rack. It often come our to be heavy duty type and it is most conventional rack. Pallet rack can both store multi-variety goods with small quantity and also unified goods with big quantity. Pallet rack is widely used in high warehouses. Pallet rack mainly consist of upright frame, beam and related accessories, like upright protector, frame barrier, pallet support bar, pallet stop beam, loading panel etc. Pallet rack structure is simple, installation is easy, disassembly is convenient, full free goods access mode can be reached.
Inquire

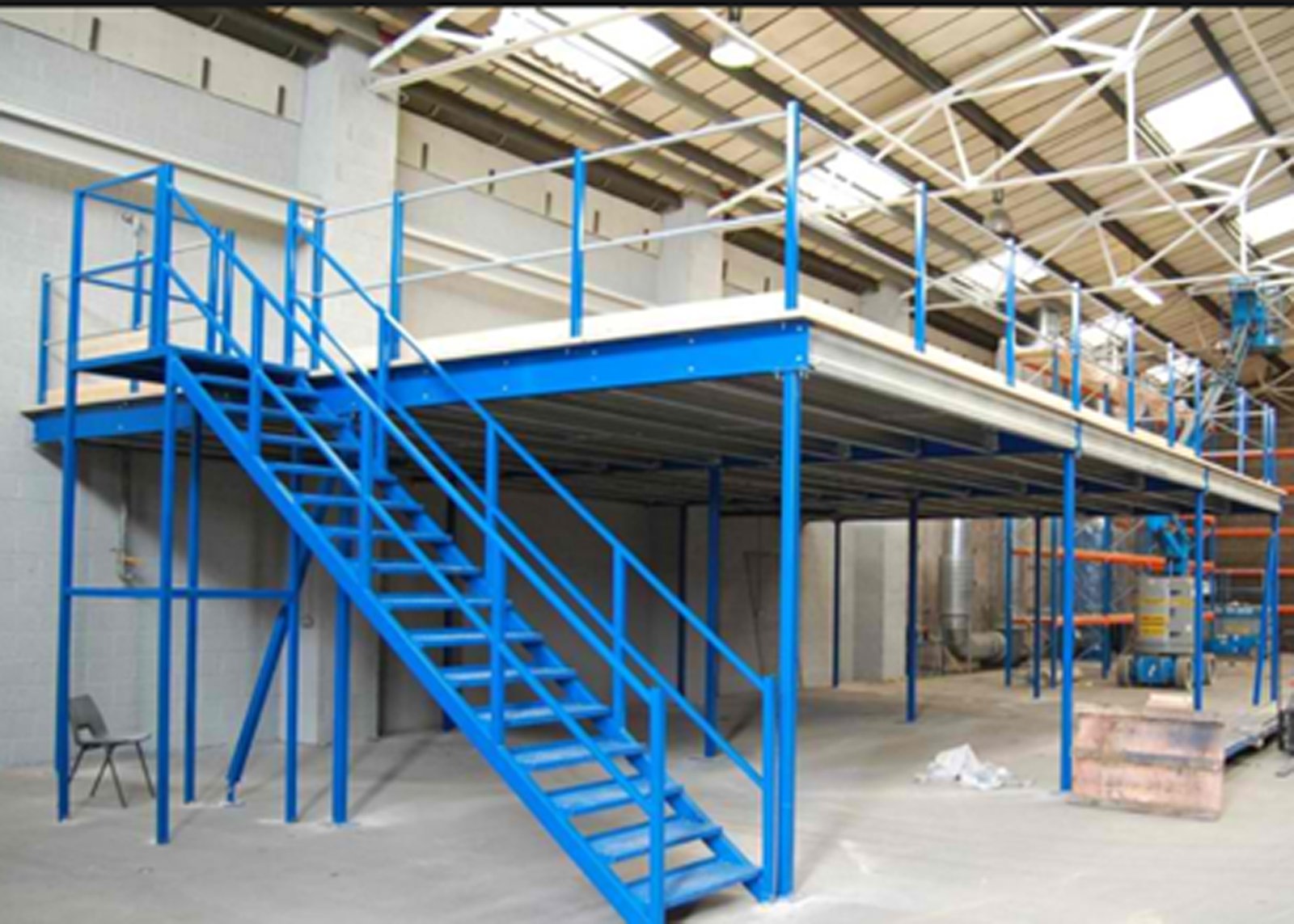

Steel platform is one kind of mezzanine, with flat roof on the top, suiting for big products. Round pipe and square pipe are often used to make uprights. Main and secondary beams are often made of H steel. Flooring can be solid type, checkered type, perforated type.
Inquire
